Gold Mining & Processing Equipment

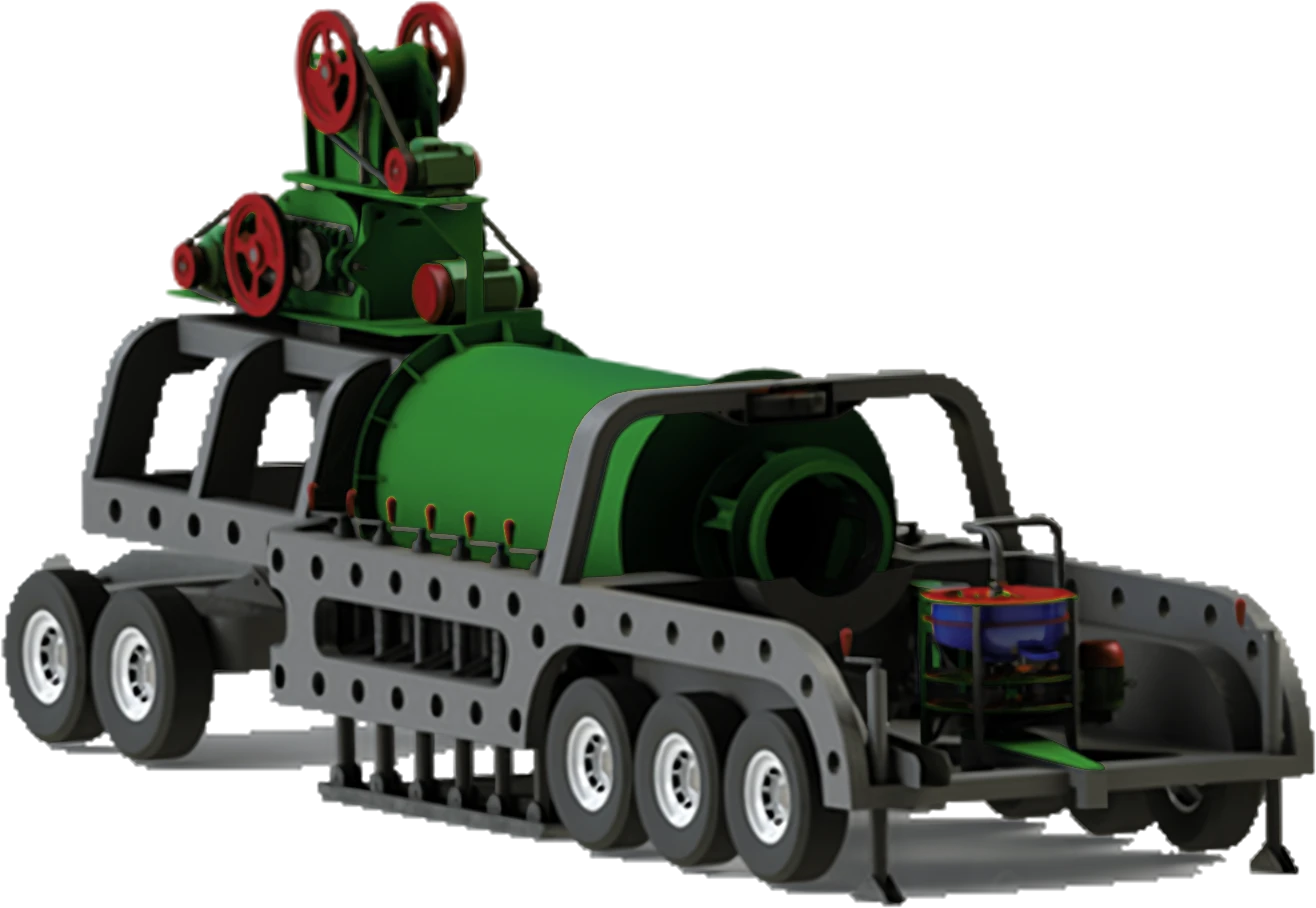

MGP-2
Mobile Gold Plant MGP-2
Mobile 5 TPH gold ore crushing, milling and gravity concentration unit with double roller crusher and attrition mill.
Capacity5 t/h
TUNOTEX · Gold Mining & Mineral Processing Equipment
Engineered for performance.Built for mining.
Mobile gold plants, trommel wash plants, centrifugal concentrators and complete processing plants for hard-rock and alluvial gold operations, shipped from South Africa to mines worldwide.
Process flowFrom run-of-mine
From run-of-mine
to doré.
Every stage of a gold recovery circuit, supplied as individual machines or as one integrated plant. Select a stage to see the equipment behind it.
01
Crush
Reduce run-of-mine ore to mill feed size.
02Screen
Size crushed ore and return oversize.
03Mill
Grind to liberate gold particles.
04Concentrate
Recover free gold by gravity.
05Leach
Recover fine gold in a CIP circuit.
06Clean out
Upgrade concentrate in the gold room.
07Smelt
Pour concentrate into doré bars.
Typical free-milling gold flowsheet · circuits vary with ore typeComplete plants
Equipment rangeGold mining equipment
Gold mining equipment
for every stage.
From a single crusher to a complete plant. Browse by category, filter by throughput in tonnes per hour, and build an enquiry list for one consolidated quotation.
Full catalogue

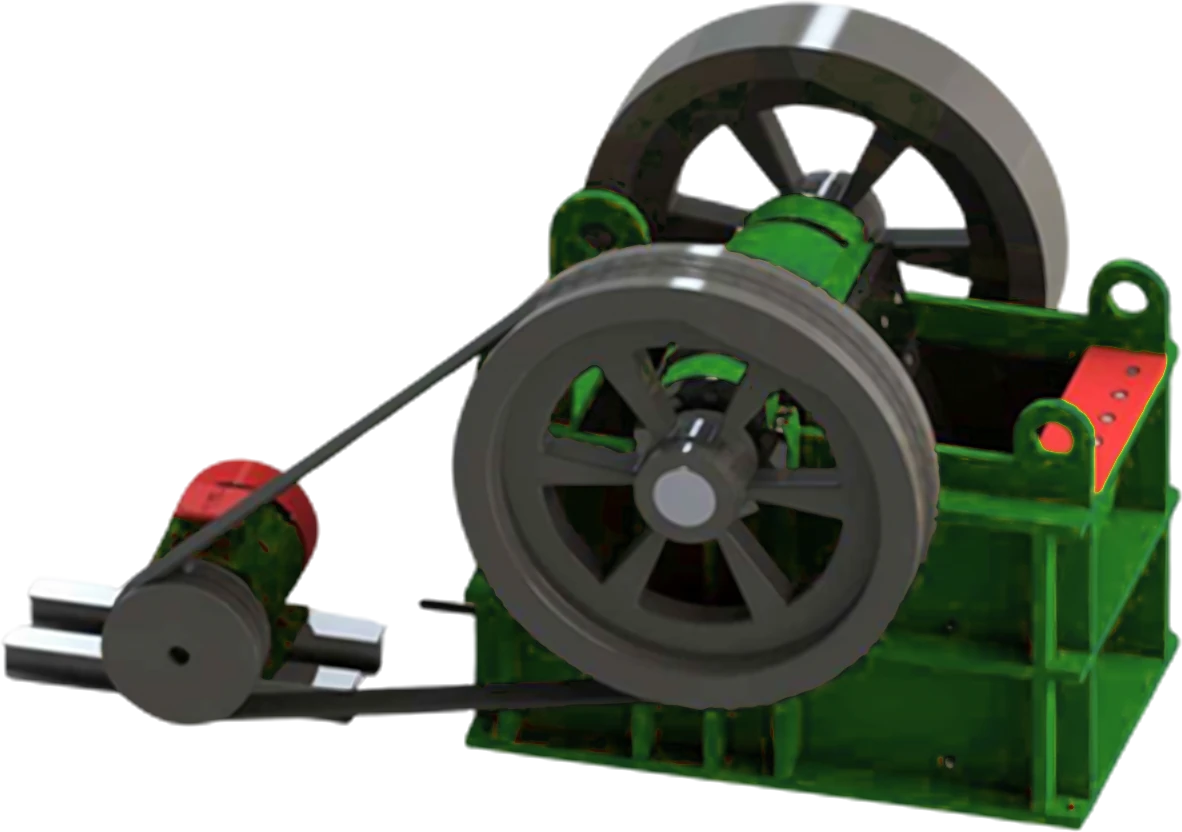

Crushing & Screening
7 MODELSJaw crushers, lab and sampling crushers and E-Mill dry/wet crushers for primary size reduction.
View range

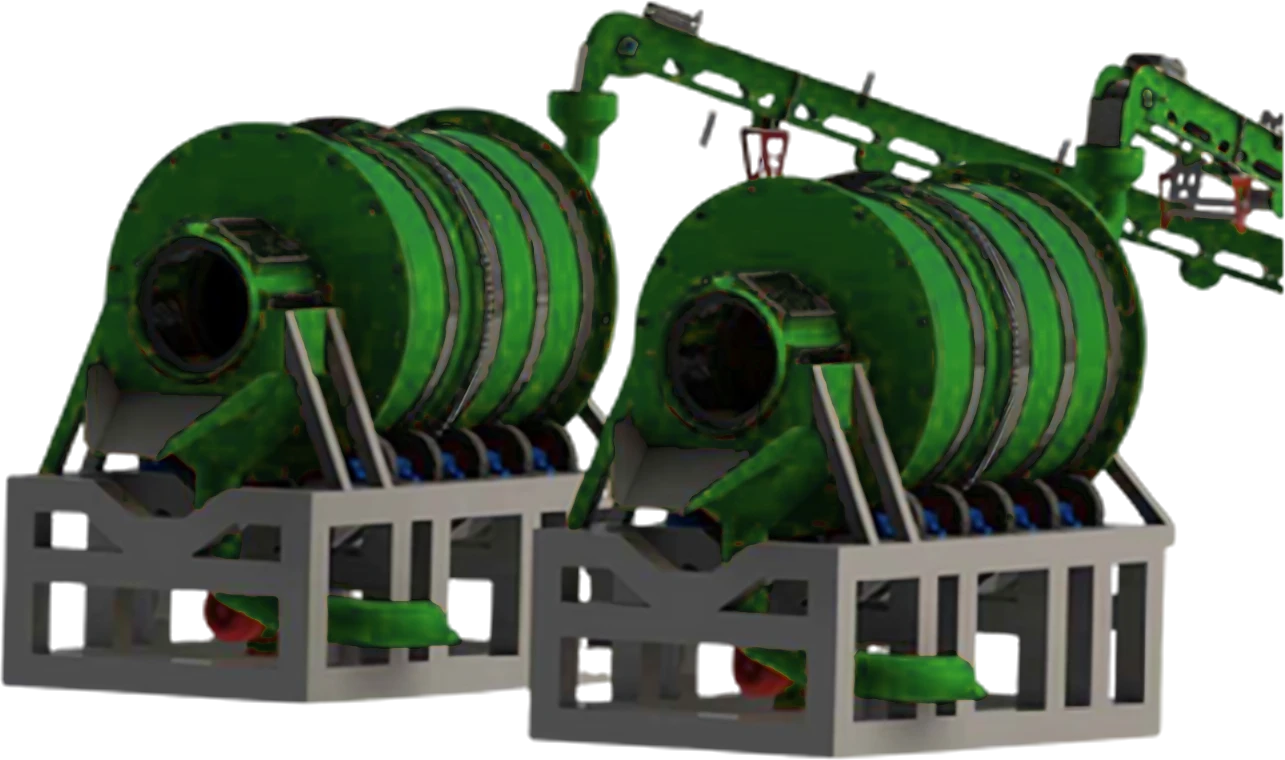

Milling & Grinding
5 MODELSDouble roller mills, attrition mills and star-type hammer mills that liberate gold ahead of recovery.
View range

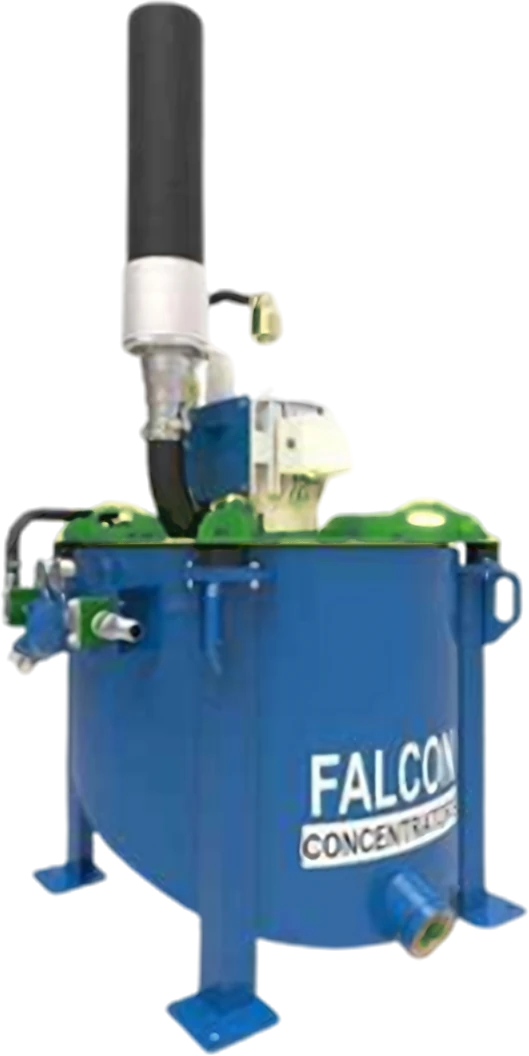

Gold Recovery & Gravity Concentration
10 MODELSCentrifugal concentrators, Ami-Flo and Ami-Fin shaking tables and Roman wheels for free-gold recovery.
View range
Alluvial Wash Plants
16 MODELSReverse helix trommels from 100 kg/h to 120 t/h, scrubber wash plants up to 300 t/h, power sluices and jigs.
View range

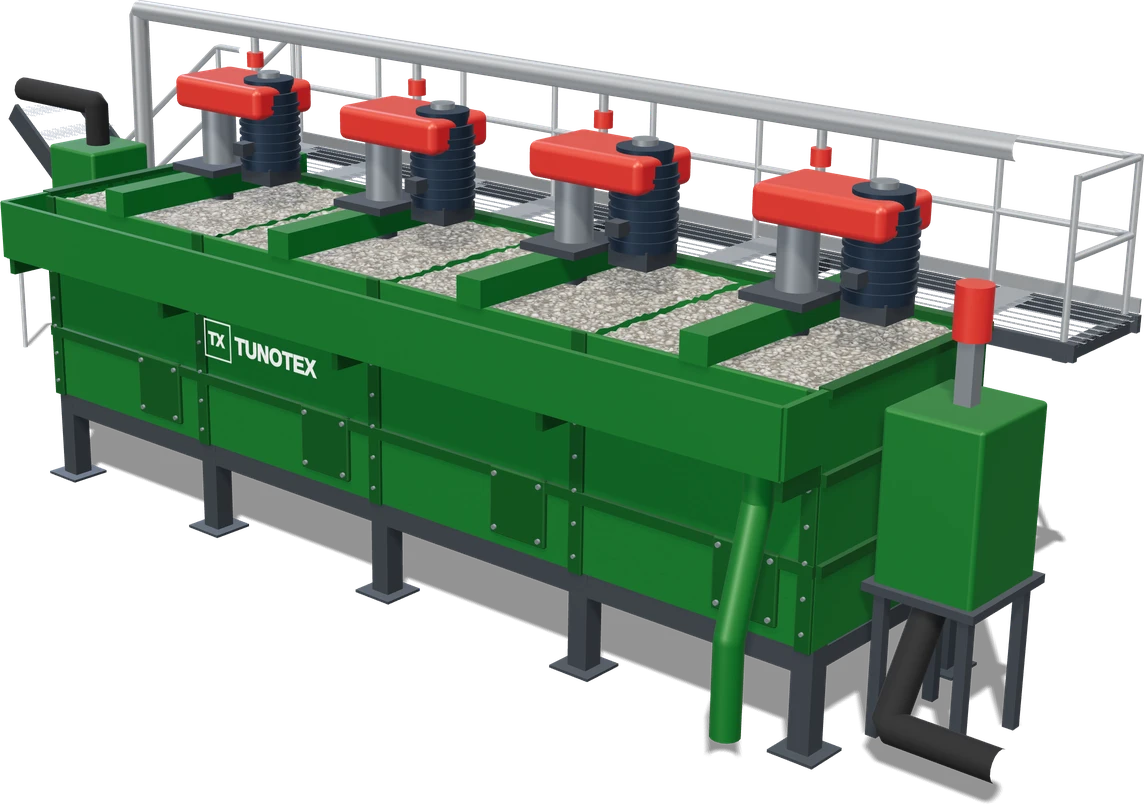

ILLUSTRATIVE RENDERFlotation Systems
ON REQUESTFlotation circuits for sulphide gold and base-metal ores, engineered to the ore on request.
View range

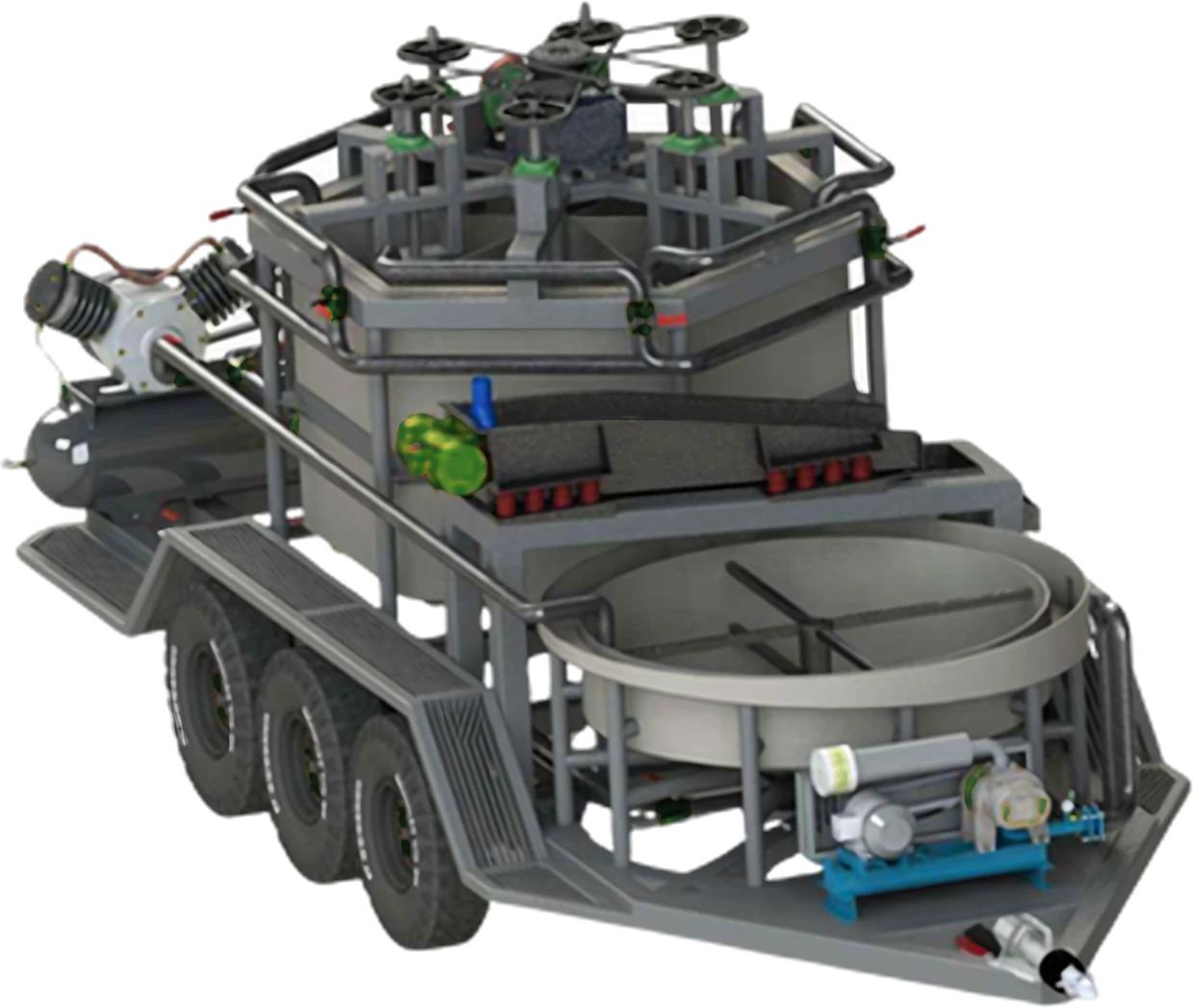

Leaching & CIP/CIL Plants
1 MODELCIP leach plants and mobile CIP test units for fine and sulphide-hosted gold.
View range

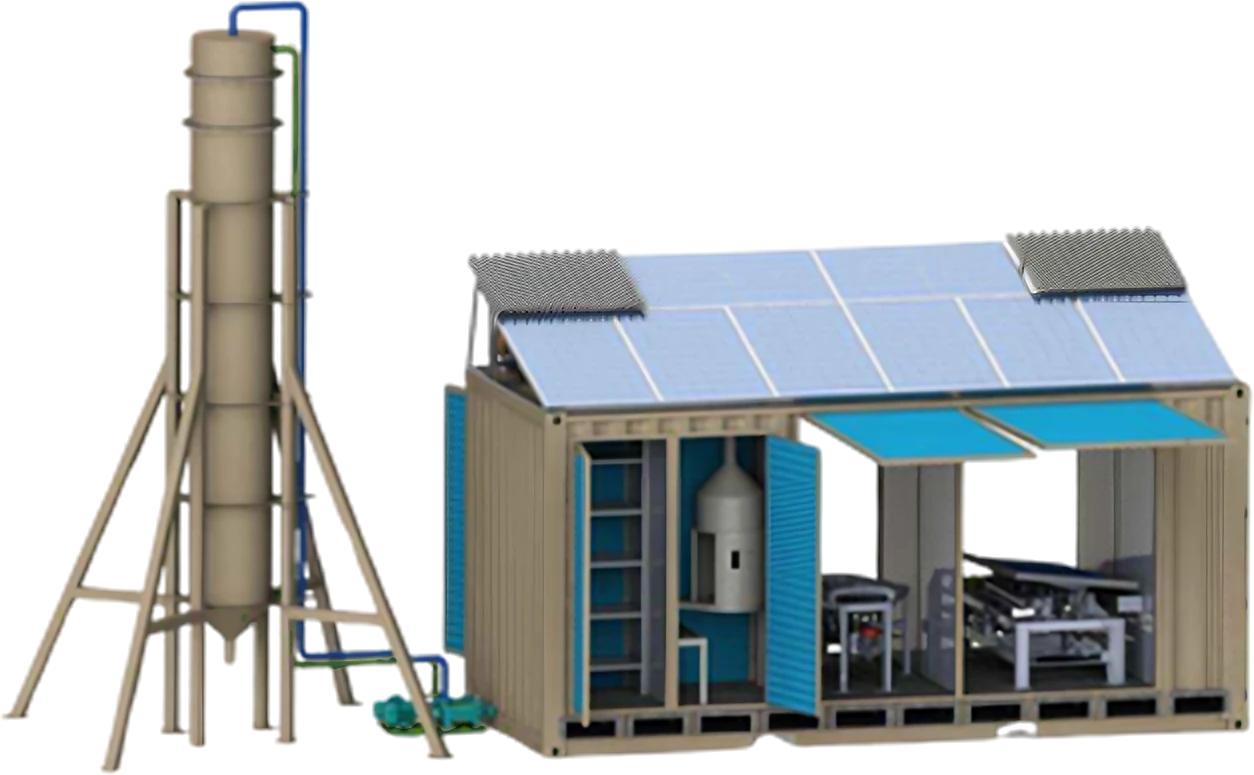

Elution & Refining Equipment
2 MODELSGold rooms, cleanout containers and smelting furnaces, from concentrate to doré.
View range
Complete Turnkey Mining Plants
8 MODELSMobile, static and containerised gold plants combining crushing, milling and recovery in one package.
View range

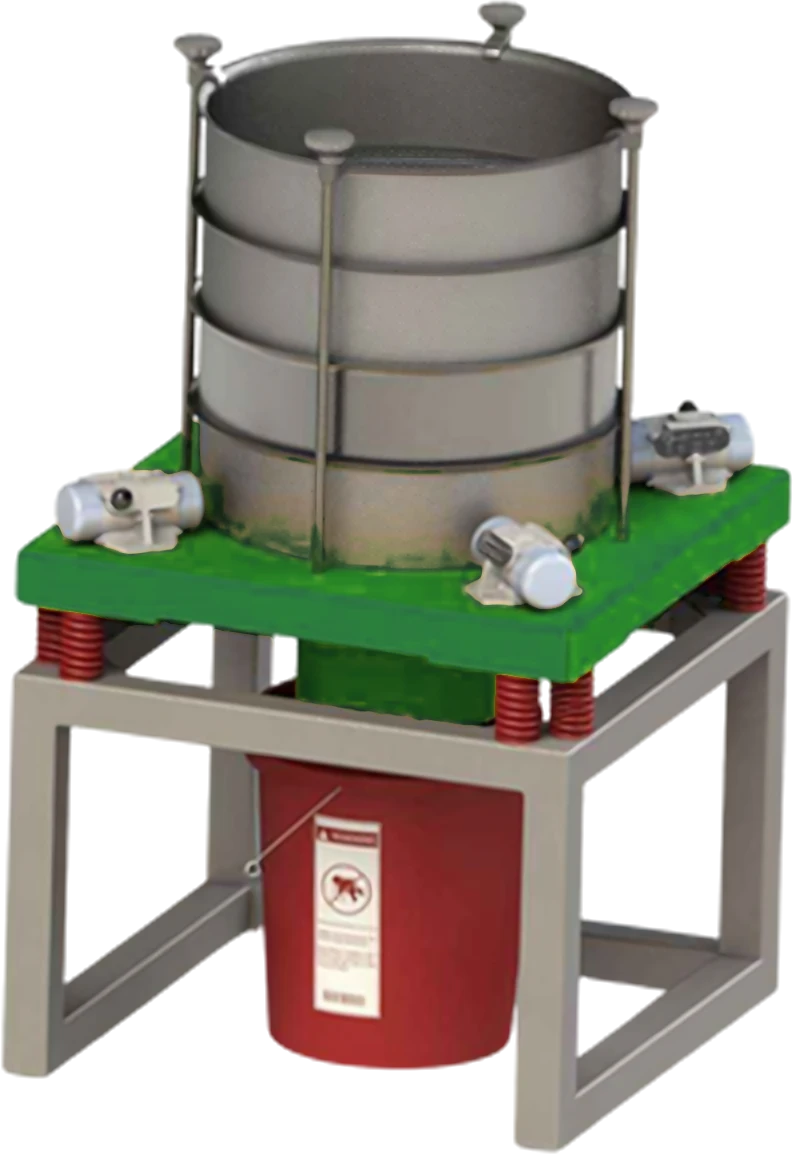

Pumps & Site Supply
SOURCEDPumps, generators, pipes, motors and valves sourced from trusted suppliers and delivered with your plant, plus sizing screens and gold pans.
View rangeFeatured equipmentPlants and machines
Plants and machines
for gold recovery.
Selected plants and machines from the TUNOTEX range, from containerised hard-rock plants to 200 TPH alluvial wash plants.

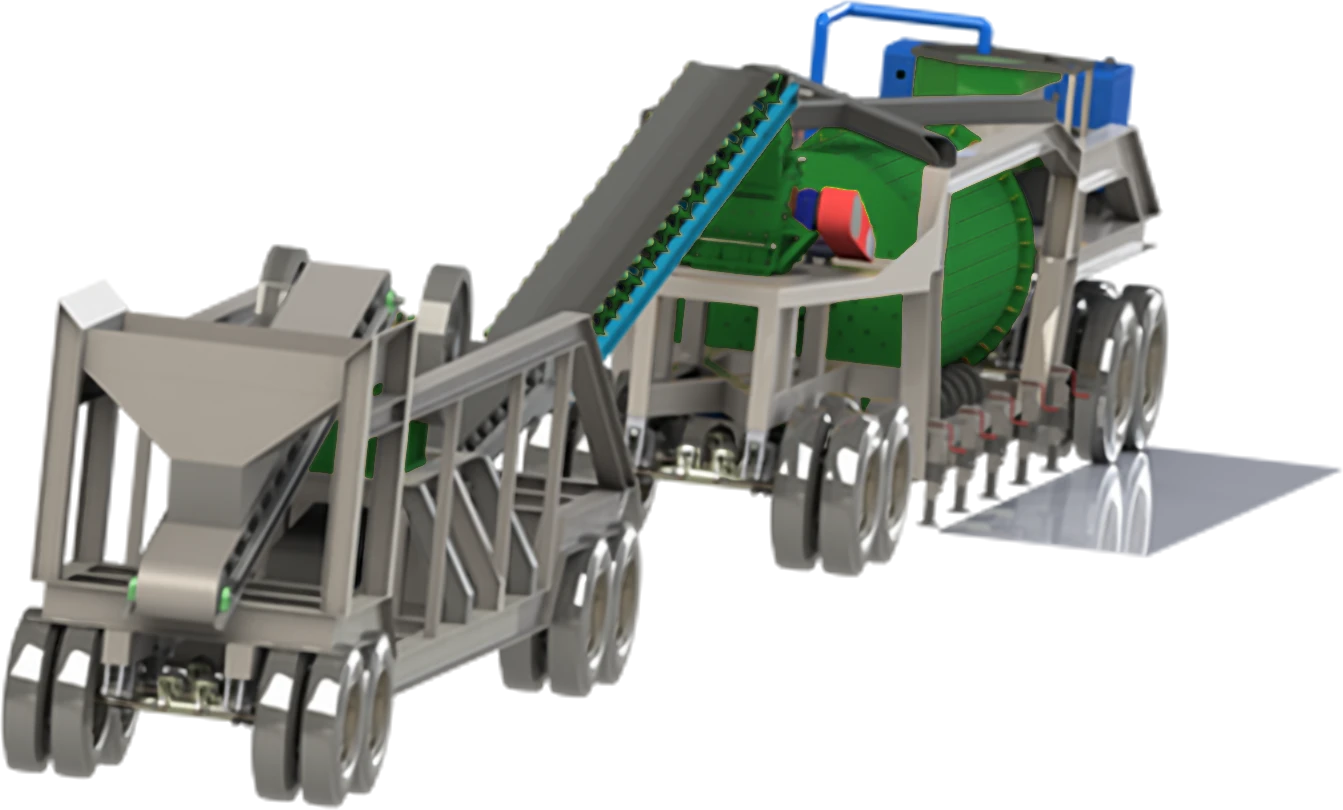

MGP-3
Mobile Gold Plant MGP-3
Two-trailer mobile 10 – 12 TPH crushing, milling and gravity plant with primary and secondary 800 mm centrifugal concentrators.
Capacity10 – 12 t/h

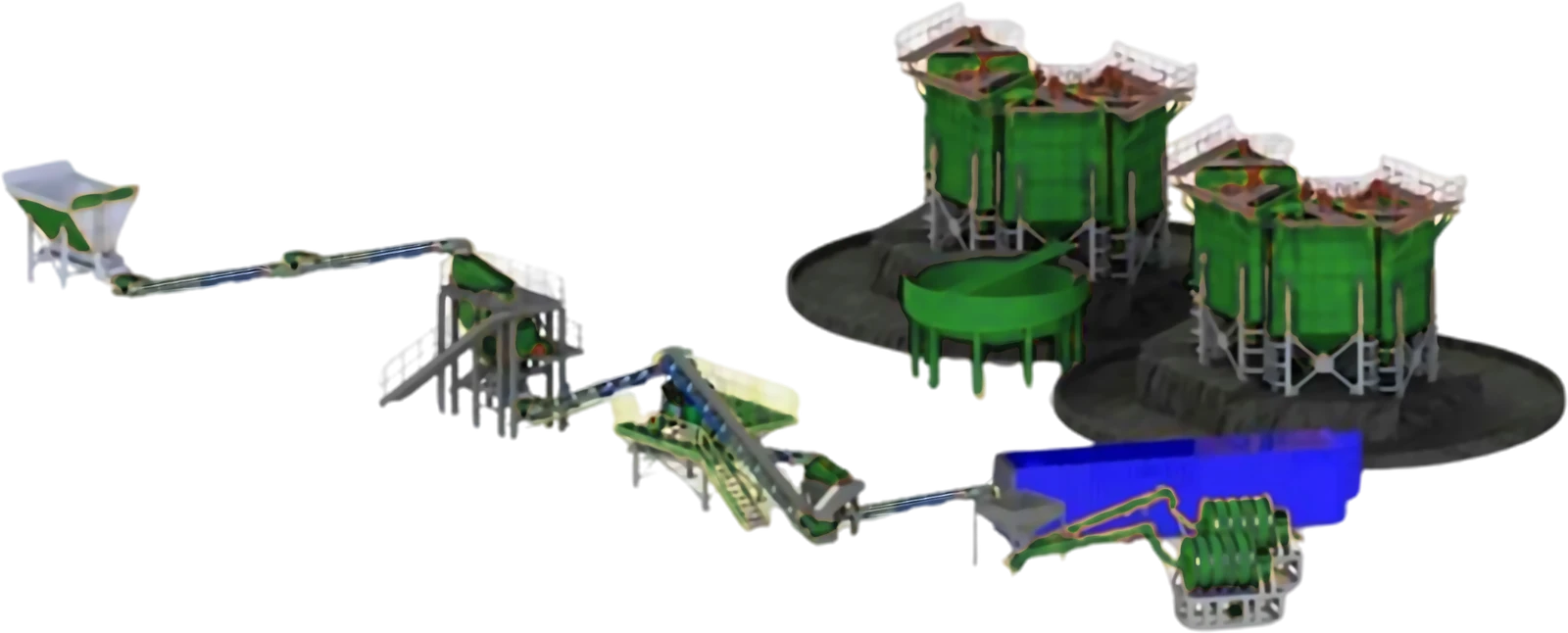

RSPU-2
Rock-Star Static Gold Processing Plant RSPU-2
Complete 20 – 30 TPH medium-scale gold operation with crushing, milling, gravity concentration, CIP leach plant and cleanout container.
Capacity20 – 30 t/h

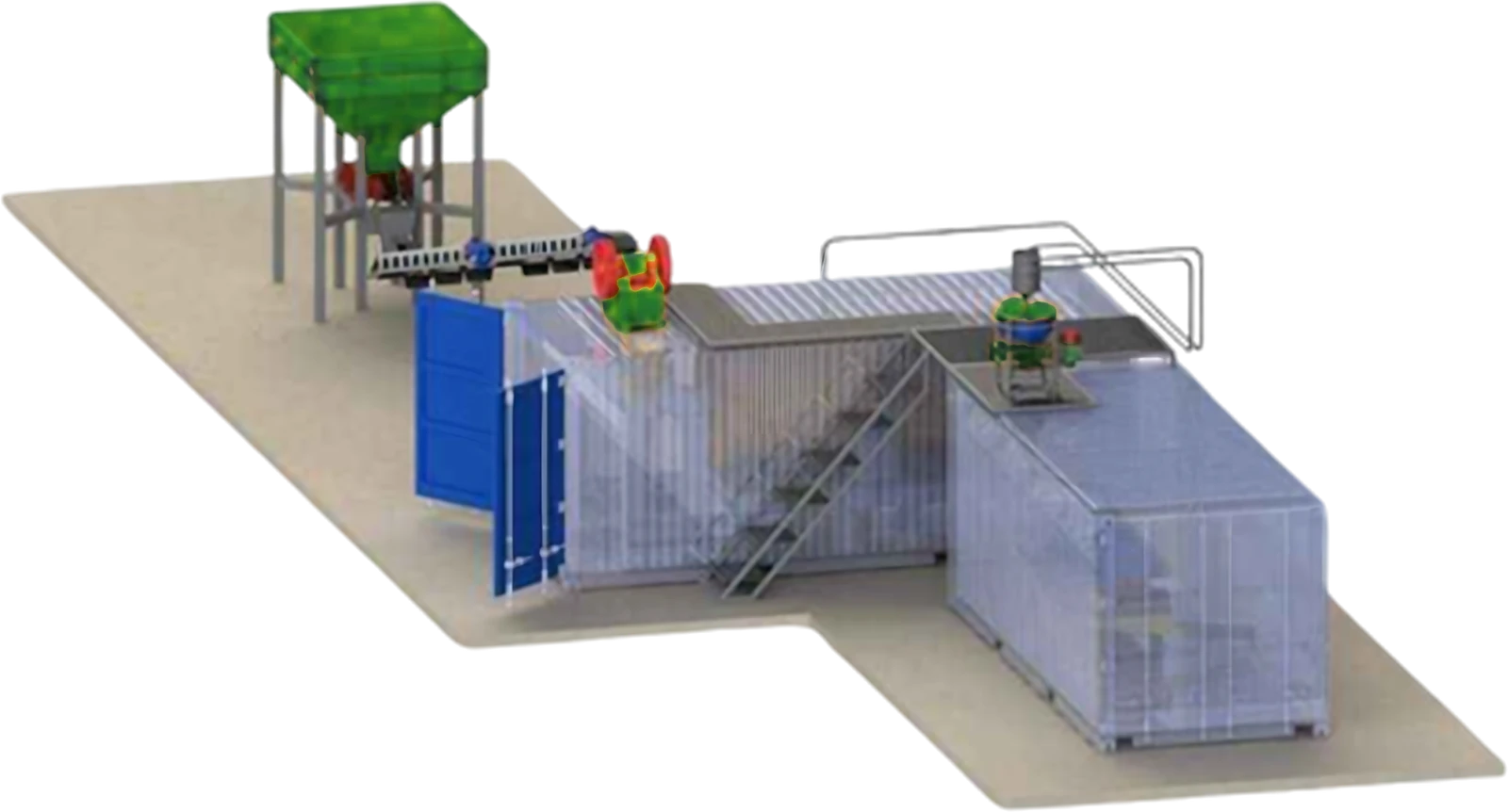

CGP-1
Containerised 5 TPH Gold Plant CGP-1
Containerised crushing, milling and gravity concentration plant, designed to run inside closed containers with opening doors for hot climates.
Capacity4 – 6 t/h
RHT-3
Reverse Helix Trommel RHT-3 · 10 TPH
10 TPH reverse helix trommel wash plant on a double-axle trailer with jack stands.
Capacity8 – 12 t/h

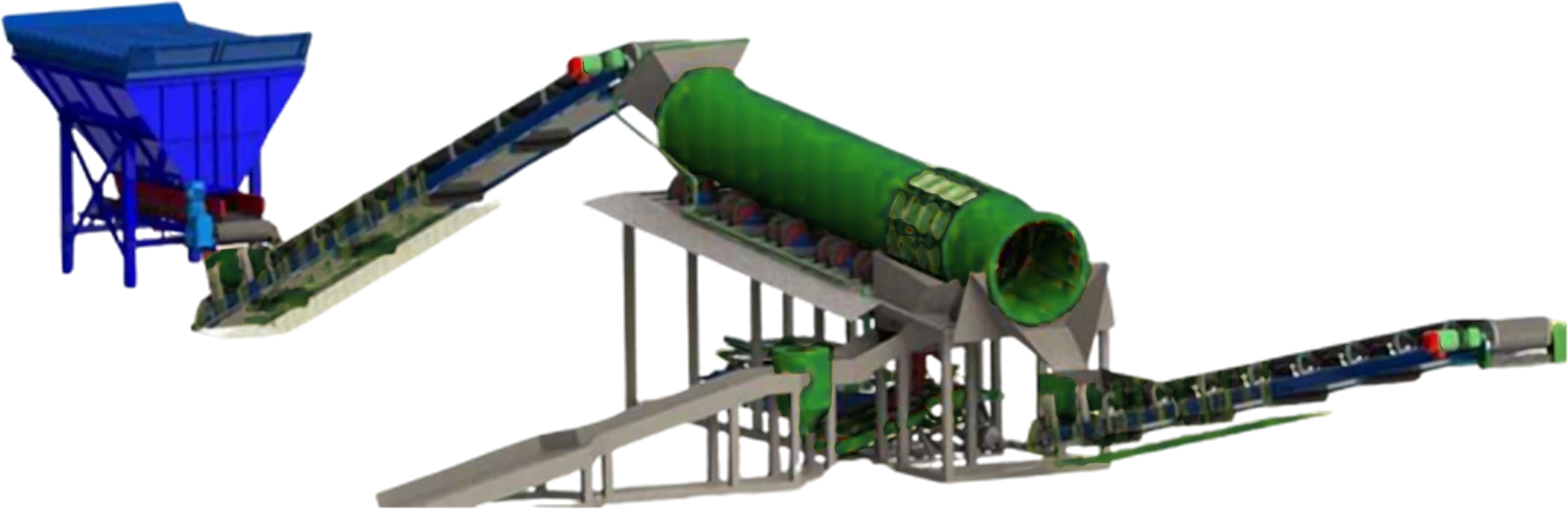

ZSP-001
50 TPH Wash Plant with Hydro-Sluice ZSP-001
50 TPH scrubber wash plant for extreme clay conditions with sizing jig and shaking table.
Capacity45 – 60 t/h

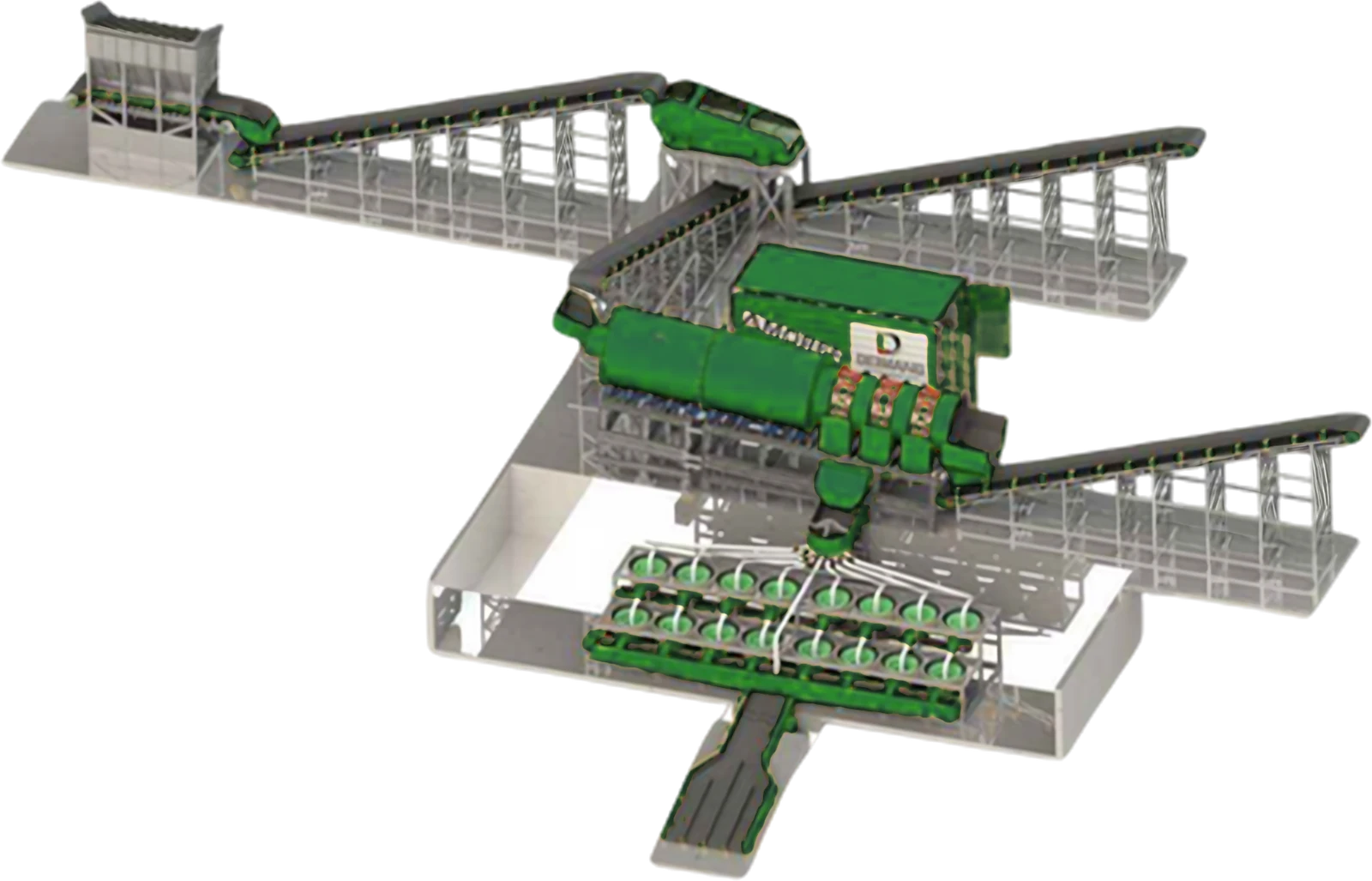

AWP-001
200 TPH Wash Plant with Cleanout Room AWP-001
200 TPH wash plant with scalping screen, clay-breaking scrubber, a bank of 16 centrifugal concentrators and a cleanout room.
Capacity180 – 300 t/h
SB750B
Centrifugal Concentrator SB750B
Semi-batch 250 G centrifugal concentrator with two-stage rotor, touch-screen HMI and VFD control.
Capacity10 – 80 t/h
Turnkey mineral processingOne supplier.
One supplier.
One complete plant.
For new operations and expansions, TUNOTEX can scope and supply a complete processing plant, from the primary crusher to the gold room, so your team deals with one partner instead of many.
- 01Site & ore assessmentOre samples, grade, tonnage and site conditions.
- 02Process designFlowsheet and equipment selection matched to the ore.
- 03Fabrication & supplyEquipment built, tested and shipped on trailers or in containers.
- 04Installation & commissioningOn-site erection, cold and hot commissioning.
- 05Training & supportOperator training, spares and technical support.
ModelRSPU-2
Throughput20 – 30 t/h
CircuitCrush · mill · gravity · CIP
Transport3 × 12 m trucks
Site supplyPumps, generators
Pumps, generators
and pipes, sourced for you.
We source site equipment from trusted suppliers, matched to your plant, and deliver it with your order.
Site supply01
Water & slurry pumps
Water supply pumps sized to your plant's litres-per-hour demand and inlet size, plus slurry and dewatering pumps.
02
Generators
Diesel generators sized for your plant's start-up load, not only its running load, with distribution leads.
03
Pipes & hoses
HDPE pipe, lay-flat hose and suction hose to connect your water source, plant and tailings.
04
Electric motors & gearboxes
Replacement and upgrade motors, gearboxes and drives for crushers, mills, conveyors and trommels.
05
Valves & manifolds
Water control valves, manifolds and fittings for spray bars, sluices and process water lines.
06
Site essentials
Water storage tanks, site containers and other items your operation needs to start up.
Global supplyBuilt in South Africa.
Built in South Africa.
Shipped worldwide.
We supply mining operations around the world. Every order is packed for export with a packing list for each container, and pumps, generators and piping can travel in the same shipment.
Worldwide shipping01
Southern & East Africa
Mobile plants travel by road on their own trailers. Larger plants go by superlink or container truck.
02
West & Central Africa
Shipped by sea in containers and on flat racks, or by road where routes allow.
03
Middle East & Central Asia
Containerised sea freight to your nearest port, with onward transport arranged on request.
04
Asia & Oceania
Sea freight to ports across South-East Asia, Papua New Guinea and Australia.
05
Latin America
Sea freight to ports serving the gold districts of South and Central America.
06
Europe & North America
Equipment and test units for exploration, pilot plants and contractors.
Simplified gold mining equipment.
About TUNOTEX
TUNOTEX (Pty) Ltd designs and supplies gold mining equipment, from prospecting sluices and lab crushers to mobile gold plants and 200 TPH wash plants, with a single point of contact from first enquiry to commissioning.
About the companyWho we supply
- Small-scale & artisanal miners
- Mid-tier gold producers
- Tailings retreatment operators
- Contractors & EPCM teams
Where we supply
GuidesBuying advice
Buying advice
from the workshop.
Guide
How to Choose a Trommel Wash Plant: Capacity, Water and Power
A practical guide to sizing an alluvial trommel wash plant: throughput and clay, feed size, water demand, power and what happens after the trommel.
Read guide GuideMobile vs Static vs Containerised Gold Processing Plants
Compare mobile, static and containerised gold plants on throughput, power, water and transport, with real figures from the TUNOTEX range.
Read guideContactTalk to our
Talk to our
equipment team.
Wherever your operation is in the world, send your ore type and target throughput and we will recommend equipment and quote delivery to your port or site.
